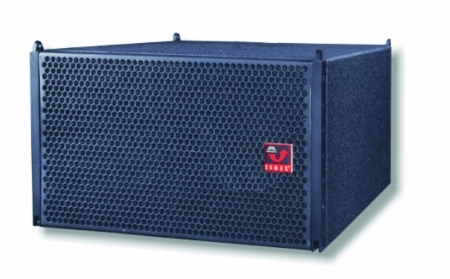

L-4BA
Time:2010-11-11 16:25:14        Click:1615
More Infomation
2x8" Active Sub Bass
PERFORMANCE
Frequency Response (Hz): 40Hz~150kHz(Recommended)
Axial Sensitivity (dB SPL,1Watt@1m):  95
Impedance (Ohms):  4
Power handling (watts RMS):  200
PHYSICAL
System Configuration:   Sub Bass
LF Subsystem:               2x8-in woofer/2-in voice coil
HF Subsystem:               Ribbon high frequence system
Enclosuer Materials:      18mm plywood with glass fiber
Finish:                            Wear-resistant black textured paint
Connectors:                   2 x Neutrik NL 4
Suspension Hardware: Proprietary rigging system
Grille:                              Powder coated perforated steel
Dimensions
  Front Height:        11.2(Inches)/284(Millimeters)
  Width:                  18.5(Inches)/471(Millimeters)
  Depth:                  21(Inches)/545(Millimeters)
Weight
  Net Weight:          18(Kilograms)
  Shipping Weight:  21(Kilograms)
