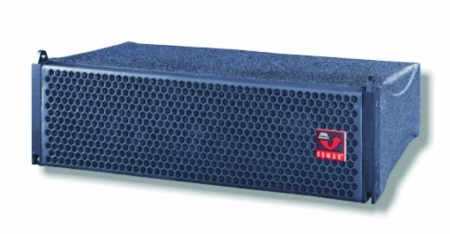

| L-4 |
| Time：2008-11-09 10:08:50 Click:1801 |
|
| More Infomation |
|
Two-Way 4” Mid & Hi PERFORMANCE Frequency Response (Hz): 125Hz~20kHz Axial Sensitivity (dB SPL,1Watt@1m) LF Enclosure 90 HF Enclosure 95 Impedance (Ohms): LF: 8/HF:8 Power handling (watts RMS): LF:80 w(125Hz~3KHz)/ HF:20w(3kHz~20KHz) Nominal Coverage Angle - 6 dB points (degrees): Horizontal 120°/Vertical 9° PHYSICAL System Configuration: 2-way,full range LF Subsystem: 2x4-in woofer/1-in voice coil HF Subsystem: Ribbon high frequence system Enclosuer Materials: 18mm plywood with glass fiber Finish: Wear-resistant black textured paint Connectors: 2 x Neutrik NL 4 Suspension Hardware: Proprietary rigging system Grille: Powder coated perforated steel Dimensions Front Height: 5.9(Inches)/150(Millimeters) Rear Height: 4.0(Inches)/102(Millimeters) Width: 18.5(Inches)/471(Millimeters) Depth: 10.5(Inches)/268(Millimeters) Weight Net Weight: 17.6(Pounds)/8(Kilograms) Shipping Weight: 22(Pounds)/10(Kilograms) Amplifier: Subwoofer comprising 2 pieces of 8"LF ludspeakers and amplifier of bass 300W 8 ohm and 300W 4 ohm for driving 4 pieces top mid&high loudspeakers |
| Preview: L-4BA | 【Back】【Print】 |
