Specification ：

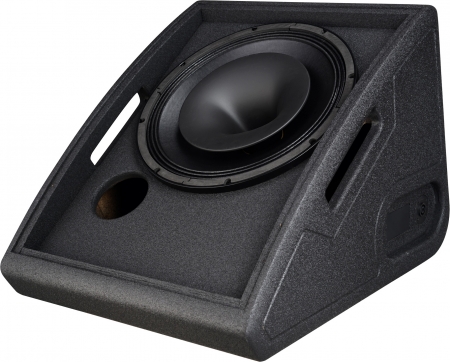

System Type: 1x12" coaxial 2-way full-range speaker

Frequency Response：55Hz-18KHz(±3dB)；

LF Component: 1x 12"woofer  /3" voice coil

HF Component:1x1" Exit/ 1.75"voice coil ;

Sensitivity (1W @ 1m): 101dB

Handling Power : 500W(RMS)/1000W(Peak)

Nominal Impedance:  8Ω

SPL: 128dB (Continuous) / 134dB(Peak)

Dispersion (HXV): H:80°×V:80°

Suspension: 8 x M8 Rigging Point

Connectors: 2× NL4SPEAKON

Connection: 1+,1-/2+,2-

Enclosure Size (W×D×H): 400x562.2x350.3mm

Net Weight: 18Kg
