Applications:

Indoor or outdoor touring performance, conference center,

small theater, dance halls, auditoriums,multi-function rooms,

banquet halls, stadiums, concert halls etc.

Product Features:

► Used together with L-10/L-10WP full-range line array speakers

to be hanged to line array system.Compact cabinet,light weight.

► Passive and active version for optional.

►Active model L-10BA is built in a three-channel digital amplifier

module, 2×800W drive L-10 full range speaker and 1×1000W drive L-

10B; The internal DSP module help optimize the performance and

sound is more clear.DSP is built-in 16 kinds of effects.

►Vertically fixed installed or be backward installed available , the top

of each speaker has hole for stand connection, can use stand to

support the full range speaker.

Product Specification:

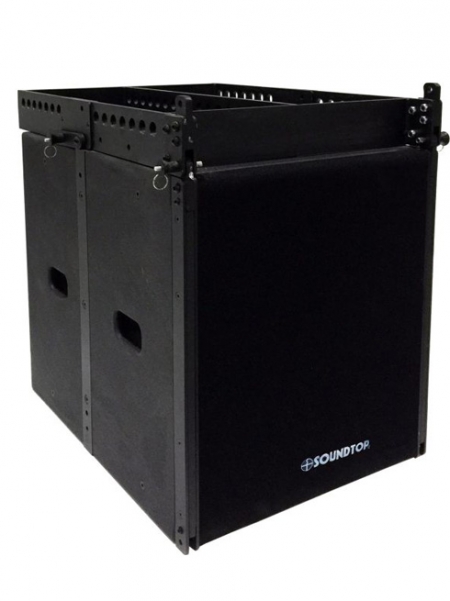

System Type: 1×18'' passive line array bass

Frequency Response: 40Hz~250Hz (- 3dB);45Hz~600Hz(-10dB)

Rated Power (RMS): 600W

Sensitivity (1W @ 1m): 104dB

Maximum SPL: 131dB

Nominal Impedance: 8Ω

Recommended Crossover Frequency: 120Hz

LF Transducer: 1×18'' woofer 4'' voice coil; ferrite

Enclosure Material: 18mm birch plywood with glass fiber/polyester

Finish: Finish: black textured paint

Grill: black steel with anti-corrosion coating

Dimensions (WxHxD): 520x 579X 640 (mm)

Net Weight: 47Kg
